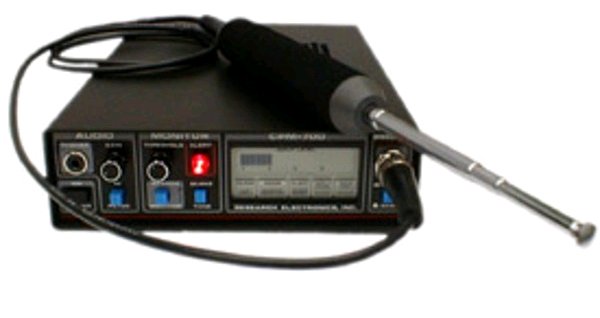

Bug Buster 700
The Bug Buster 700 is a
broadband receiver designed to detect and locate all
major types of electronic surveillance devices including
room, phone, body bugs, video transmitters, and tape
recorders.
Broadband receivers such as the Bug Buster 700 provide a
very important cost-effective tool for professional
sweep teams, government security personnel, and private
citizens with important security needs. The Bug Buster
700 is very effective for rapidly detecting and
locating transmitted signals, while being very easy to
learn to use. The Bug Buster 700 sweep kit
includes a custom Cordura case that contains all items
necessary to conduct a professional sweep.
Bug Buster 700 Advantages
Portable Sweep Kit - provides everything needed to
perform a professional sweep; fits inside a standard
briefcase.
Multi-Functional Utility - Comes with probes to detect
RF transmitters (audio and video), carrier current
transmitters, and telephone bugs. Probes also available
to detect for infrared transmitters, tape recorders, and
acoustic leakage.
Wideband Coverage - from 200Hz to over 3GHz with no
holes or gaps.
Monitor Mode - after a sweep, the alarm monitor (silent
or audible alert) guards against new devices brought in
or remote control activation of surveillance devices.
Auxiliary Audio Input - allows user to listen to
telephones or lines for "hotmikes," hookswitch by-pass
and "infinity" bugs. Unknown wires and cables can be
tested for wired microphones.
Specifications
R.F. Probe:
* Gain: 20dB nominal Frequency
* Response: 50kHz-2GHz ±3dB 3GHz-10dB
* Sensitivity: -62dBm (1 segment) -85dBm M.D.L.
VLF Probe:
* Frequency Response: 15kHz-1MHz-3dB
* MAX input voltage: 300 VAC 50-60Hz
* Isolation: 1500 VAC 60Hz
* Sensitivity: -38dBm (1 segment) -60 M.D.L.
Audio Amplifier:
* Input Impedance: 50K Ohm balanced
* Input Range: 1.7uV-10V (135dB) AGC
* Dynamic Range: 100dB (high and low gain)
* Frequency Response:100Hz- 15kHz±3dB (filtered)
500Hz-24dB/octave, 2.5kHz-18dB/octave
Headphone Output: 5Vp-p 220
* Record Out: 25 mVp-p nominal with AGC
Display:
* LCD bargraph: 18 segment with pulsing single segment
trip point
* 50dB dynamic range (1 segment High Gain to MAX Low
Gain)
* Alert Output: 2.8kHz tone or silent red LED at 2Hz
* Remote Output: N.O. contact (300mA 25V MAX)
Battery:
* 8 ea. MN1500 AA Alkaline - Life 10-16 hrs
* (Optional) 8 ea. 550mAh NiCad - life 3-5 hrs per
charge
* Low Battery Indicator: approx. 10% remaining power
AC adapter/Charger:
* Input: 95-l30VAC 50-60Hz, or 200-275VAC 50-60Hz
* Output: 12VDC with 500mA NiCad Recharge Time: 8-10 hrs
Bug Buster 700 Unit:
* Size: 9 1/8 x 6 1/8 x 1 3/4 in, 23.2 x 15.6 x 4.4 cm
* Weight: 39 oz, 1.1 kg
Carry Case with all standard Items:
* Size: 16 3/8 x 11 1/4 x 3 in, 41.6 x 28.6 x 7.6cm
* Weight: 7 lbs, 3.18 kg
This is the same unit the
CIA uses to sweep for bugs. This is the same unit the
CIA pays $22,500 per unit for.
The Bug Buster 700 $2,500 US
Ordering Information |
